Description

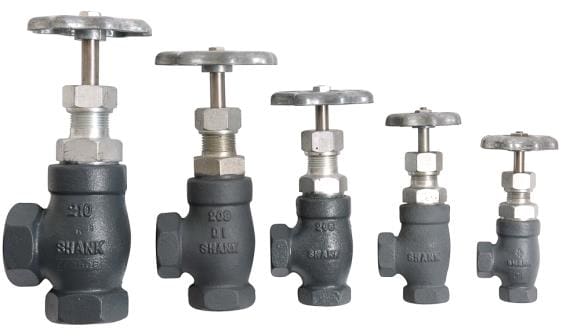

Shut-off valves are available in a globe design to work with pipe sizes from ¼” up to 1 ¼” and in an angle design to work with pipe sizes from ¼” up to 1”. They come with zinc-plated carbon steel (-CS) or stainless steel (-SS) stems. The valve body materials are ductile iron or C.I. 40 and are pressure-tested for leakage after assembly.
| Angle Shut-off Valve Specifications | |
|---|---|
| Catalog Number | 208 |
| Pipe Size | ½” |
| Weight, lbs | 3 |
| A – Center to Side Face | 1 ¾” |
| C – Center to Bottom Face | 1 ¾” |
| D – Center to Top of Wheel (open) | 5 ½” |
Additional Information
- Valve ports are full size, insuring maximum flow.
- This is a two-piece design: the convex base fits into the shutoff disc and permits swivel action which maintains perfect alignment at all times.
- The shut-off disc is held in place on the stem by a spring ring, allowing free swivel action.
- The packing ring chamber is of special design: It is machined so that sealing is necessary only around the stem proper.
- The composition packing ring is impregnated with graphite for ease of operation and will not deteriorate in service.
- These valves are back seating.
